Specifications for
2014 Model Alpina Sherpa Dual Track Snowmobile

You decide how you're going to use your Sherpa!

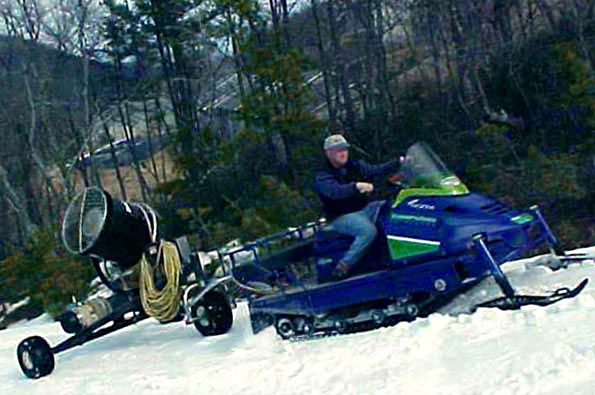

Sherpa pulling Snogun

Click on the logo to

Link to the Alpina site

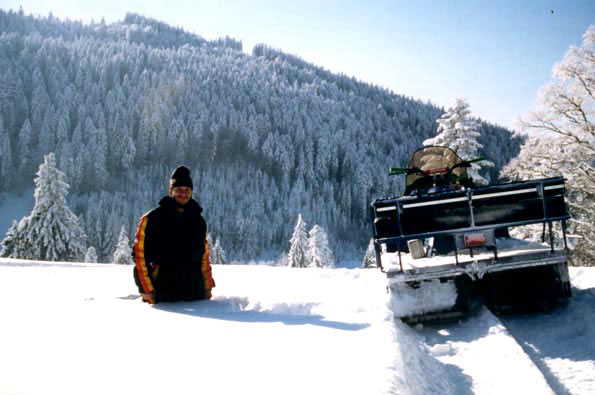

Sherpa on deep snow

Click here for
More Information
or to Contact us

HJ Roberts Associates
1321 Bragg Hill Road
Norwich, VT 05055
(802) 649-1573

email: info at TRAILGROOM.COM







Engine (conforms to US EPA and EURO-5 Emission Standards)

Displacement
1596 cc.

Cylinders
4 in-line

Cylinder head
aluminum with 4 valves per cylinder

Camshafts
dual overhead with variable valve timing

Ignition system
Electronic CDI / solid state

Exhaust system
3-way catalytic converter with dual-lambda probe

Fuel type
unleaded gasoline

Max. Torque@4150 rpm
114 lb-ft (155 Nm)

Cycle
4-stroke

Cylinder block
aluminum

Lubrication
forced

Fuel delivery system
Electronic Multi-point Fuel Injection

Cooling
liquid with front radiator and dual fans

Electric starter
standard

Max. Power@6000 rpm
115 hp / 86kw

Electric engine pre-heater
standard

Drive train with T.C.M.S.

Drive pulley
3-arms centrifugal clutch-TEAM

Final transmission
Alpina Power-plus with direct drive system (chainless) two forward gears

Driven pulley
torque-sensing with rollers and triple-angle helix-TEAM

Reverse plus neutral gear
standard

Electrical

Electric system
12 V. with 112 amp alternator

Headlight
four 55 Watt halogen bulbs, dual parking-lights

Rear accessory wiring
10-wire harness in conduit

Battery
12 volt, single 62 amp/hr

Taillight
LED .19/1.38 Watt

Master Battery Disconnect Switch
standard

Suspension and Steering

Track suspension
self-leveling ATSS

Handlebar
Tommaselli adjustable steel handlebar

Front-suspension type (in./mm.)
telescopic suspension
(travel 5-3/4 / 145)

Skis

Construction
composite plastic/steel skis with extra-wide HD-PE skin

Wear bars
Carbide / Koromant

Tracks

Number of tracks
2-Twin

Tracks profile
high-traction, Camoplast Ripsaw

Track carrying structure
Nylon fabric and cord

Lug-height (in./mm)
1.2 / 30

Brakes

Brake system (in./mm.)
disc brake 10-1/2 / 266

Parking / emergency brake
mechanical self-adjusting

Service brake
hydraulic self-adjusting

Instrumentation

Engine temperature gauge
standard

Electronic tachometer
standard

Fuel-level gauge
standard

Electronic engine hour meter
standard

Electronic speedometer
standard (with total and trip odometer)

For the Operator

Lever controls
standard

Electronic check-panel (ADAM)
standard

Electric grips heater
Standard

High windshield
Standard

Floor
Aluminum 5-bar tread plate

Handlebar electric controls
Domino / Grimeca standard

Saddle
double-seat with electric heater

Throttle
right hand twist-grip

Construction

Frame
Steel chassis MIG welded

Load Platform
Aluminum tread plate

Hood
Fiberglass

Tow Hitch
pintle hitch and 2” square tube receiver

Dimensions

Approx. overall length (in./mm.)
135 / 3435

Load platform capacity (in./mm.)
50x26.5 / 1270x680

Track-width (in./mm.)
20+20 / 500+500 Twin

Approx. max. Width (in./mm.)
57 / 1446

Estimated dry-weight (lbs./kg.)
1300 / 590

Fuel tank capacity (gallons/liters)
12/45

Warranty

12 months 100% parts replacement warranty on all parts failures due to defects in manufacture
